FAW JH6 8X4 Dumper 420HP


(Nickel Hauling Truck)(RHD)

The FAW JH6 8x4 420HP is a heavy-duty nickel hauling truck designed for challenging transport needs. It features a powerful 420 horsepower engine and an 8x4 drivetrain, ensuring exceptional stability and traction, especially in rugged environments. With a right-hand drive (RHD) setup, it’s suitable for regions with left-side driving. Built for durability and high efficiency, the FAW JH6 8x4 is an ideal choice for nickel hauling, offering reliable performance and the capability to carry substantial loads over long distances.

Description

 FAW JH6 6X4 390HP Coal Hauling Truck Core Advantages
  • 1) 11 liter All-win engine, as well as the equivalent technology from Europe. The four-valve engine is designed with sufficient intake and thorough exhaust.
  • 2) 700 L high-strength steel plate frame. Unique rolling processed frame, lightweight, high strength, and bending resistance.
  • 3) The patented dual I-bar V-shaped arrangement with low center of gravity.
  • 4) Maintenance-free balanced suspension shaft and 4U bolt fastening.
  • 5) The first all-steel cab in China to pass the highest collision regulation standard in Europe (Regulation ECER29).
  • 6) The convex sunshade is able to block more light.
  • 7) The exhaust pipe blows upward/Oil type Air Filter.

Technical Specifications

Main Spesification:

Model:

CA3310P25K2LT4YEA80

Type:

8x4 Dumper chassis

MASS:

Max GVW (kg):

70000

Curb Weight (Kg):

13000

Max. Loading Capacity (Kg):

57000

Upbody Optional (mm):

7200 x 2400 x 1800

DIMENSIONS:

Length*Width*Height (mm):

9545 x 2550 x 3365

Wheel Base (mm):

1900+3750+1450

Wheel Track Front /Rear (mm):

2055/1878

Overhang Front /Rear (mm):

1495/950

PERFORMANCE:

Max. Speed (Km/h):

70

Max. Grade Ability (%):

35

Approach/Departure Angle (°):

17 / 40

Min. Ground Clearance (mm):

355

Min. Steering Radius (m):

21.4

CAB:

Model CAB:

JH6, RHD

Category:

Hill floor/Flat roof/Single sleeper

FRAME:

Main Rail Section (mm):

300 x 80 x (8 + 8 + 5)

ENGINE:

Model Engine:

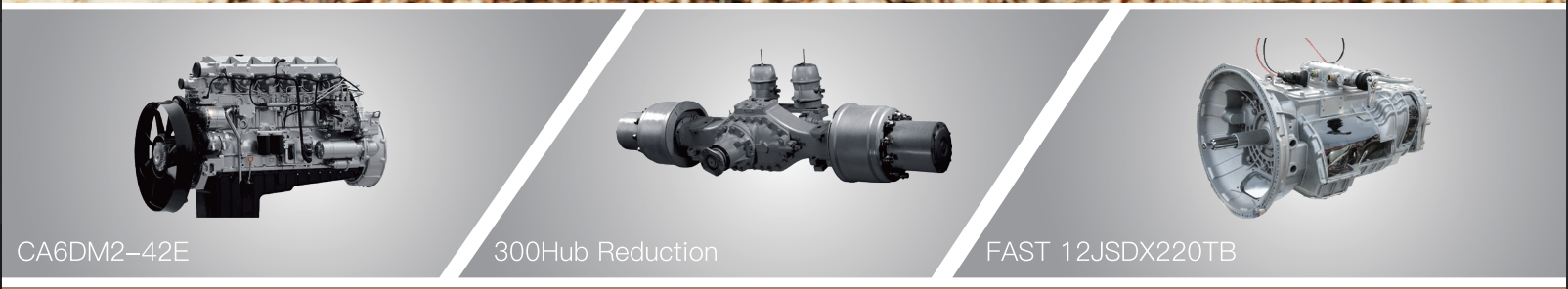

FAW CA6DM2-42E

Type Engine:

6 in-line/Water-cooling/Inter-cooling, common rail, ECU

Displacement (L):

11.04

Max Output Power (Kw/rpm):

312/1900

Max Torque (Nm/(r/min)):

2100/1300

Horsepower (Ps):

420

Emission Level:

/

WHEEL:

Tire Model:

12.00R24-20PR

Tire Rim:

8.5-24

CLUTCH

Driven Plate Dia

EATON φ430

Clutch Type

Dry type diaphragm clutch

STEERING

Steering Type

17Mpa

Ratio

26.2

TRANSMISSION

Transmission Model

FAST 12JSDX220TB

Transmission Type

12+2 gear, 2200Nm

Forward Gear Ratio

i1=15.53; i2=12.08; i3=9.39; i4=7.33; i5=5.73; i6=4.46; i7=3.48; i8=2.71; i9=2.11; i10=1.64; i11=1.28; i12=1.00

Reverse Gear Ratio

iRH=3.33; iRL=14.86

AXLE

Front

2055 model, 9000kg

Rear

300 hub reduction, 16000kg, Reduction Ratio: 5.921

SUSPENSION

Suspension Type

Double I-bar, 4U leaf spring bolts

Leaf Spring

Leaf spring, front 11/13, rear 13

BRAKE

Driving Brake

Dual circuit air braking system

Parking Brake

Spring cylinder storage

Auxiliary Brake

Engine brake, hydraulic retarder

OTHER

Fuel Tank

400L

Battery

12V / 150Ah x 2, maintenance-free

Seat

2 seats, driver air seat

Brake Valve

Wabco

PTO

Spline type

A/C

Standard

Air Filter

Oil type

Upbody (mm)

Dimenssion Upbody

7200 x 2400 x 1800 mm

Bottom plate

Material T700 dengan ketebalan 10mm

Lifting

Front Lifting

Shape

Rectangle

Other

Slide plate two beams, with speed limiter, with water spraying system (700L)

Side plate

Material T700 dengan ketebalan 8mm
