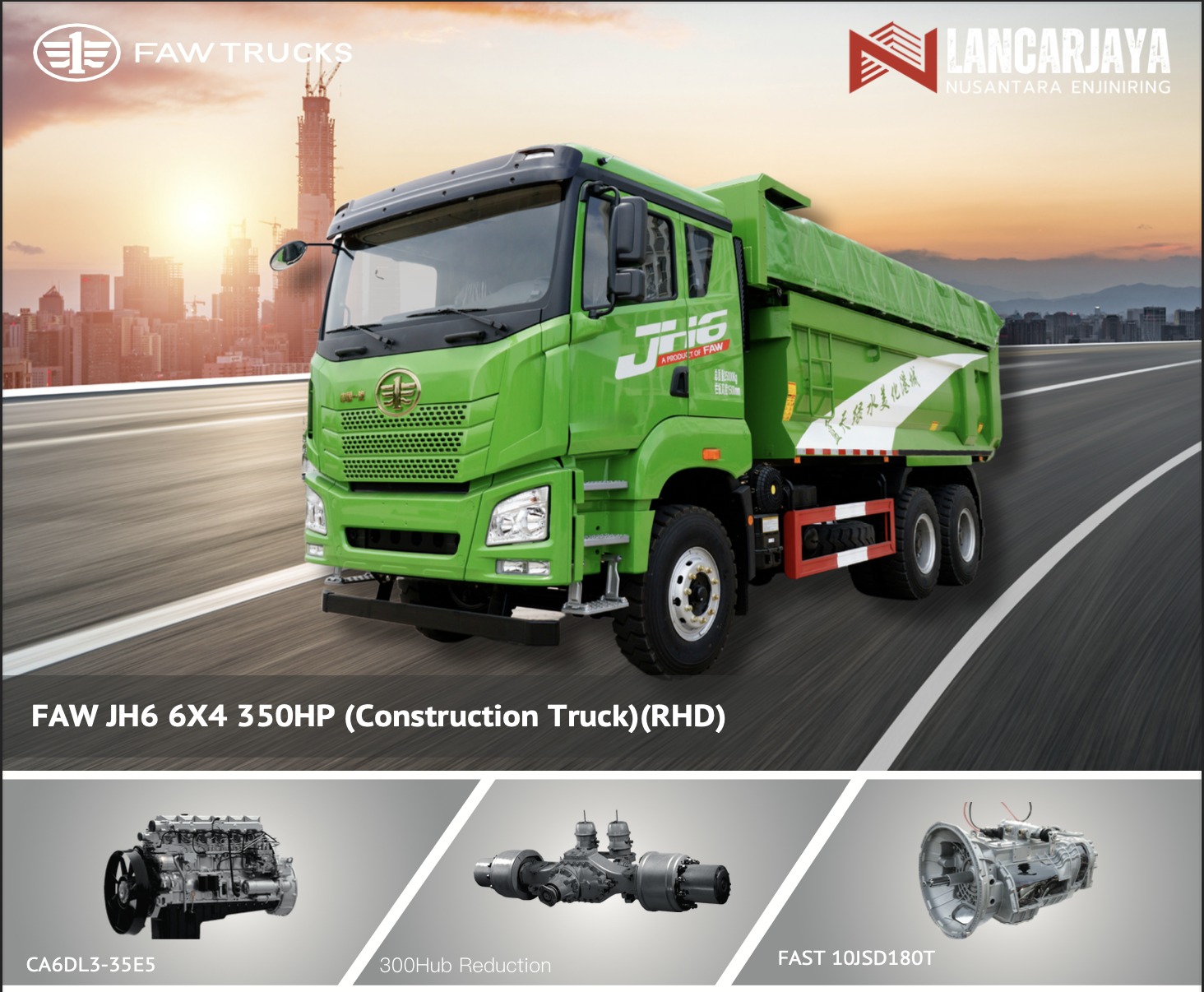

FAW JH6 6X4 350HP


(Construction Truck)(RHD)

FAW Trucks, a brand under the First Automobile Works (FAW) Group, is one of China's leading commercial vehicle manufacturers. Founded in 1953, FAW Group has grown to become a global player in the automotive industry, producing a wide range of vehicles including trucks, buses, and passenger cars.

Description

  FAW JH6 6X4 350HP Construction Truck Core Advantages
  • 1) 700 L high-strength steel plate frame. Unique rolling processed frame, lightweight, high strength, and bending resistance.
  • 2) The patented dual I-bar V-shaped arrangement with low center of gravity.
  • 3) Maintenance-free balanced suspension shaft and 4U bolt fastening.
  • 4) The first all-steel cab in China to pass the highest collision regulation standard in Europe (Regulation ECER29).
  • 5) The convex sunshade is able to block more light.
  • 6) The exhaust pipe blows upward/Oil type Air Filter.

Technical Specifications

Main Spesification:

Model:

CA3259P27K2L1T1E6A80

Type:

6x4 Dumper Chassis

MASS:

Max GVW (kg):

45000

Curb Weight of Chassis (Kg):

10500

Max. Loading Capacity (Kg):

34500

DIMENSIONS:

Length*Width*Height (mm):

7845*2550*3325

Wheel Base (mm):

4100+1350

Wheel Track Front /Rear (mm):

2055/1878

Overhang Front /Rear (mm):

1495/900

PERFORMANCE:

Max. Speed (Km/h):

75

Max. Grade Ability (%):

35

Approach/Departure Angle (°):

17/40

Min. Ground Clearance (mm):

314

Min. Steering Radius (m):

16

CAB:

Model CAB:

JH6, RHD

Category:

Hill floor/Flat roof/Single sleeper

ENGINE:

Model Engine:

FAW CA6DL3-35E5

Type Engine:

6 in-line/Water-cooling/Inter-cooling, ECU, SCR

Displacement (L):

8.6

Max Output Power (Kw/rpm):

261/2100

Max Torque (Nm/(r/min)):

1650/1300-1450

Horsepower (Ps):

350

Emission Level:

Euro 5

CLUTCH:

Driven Plate Dia:

EATON Φ430

Clutch Type

Dry type diaphragm clutch

STEERING

Steering Type

17Mpa

Ratio

26.2

TRANSMISSION

Transmission Model

FAST 10JSD180T

Transmission Type

10+2 gear, 1800Nm

Forward Gear Ratio

14.986, 11.188, 8.306, 6.105, 4.475, 3.349, 2.5, 1.856, 1.364, 1.0

Reverse Gear Ratio

15.113, 3.377

AXLE

Front

2055 model, 9000kg

Rear

300 hub reduction, 16000kg

Reduction Ratio

5.921

FRAME

Main Rail Section (mm)

30080(8+8+5)

SUSPENSION

Suspension Type

Double I-bar, 4U leaf spring bolts

Leaf Spring

Leaf spring, front 11/rear 13

WHEEL

Tire Model

12.00R20-18PR

Tire Rim

8.8-20

BRAKE

Driving Brake

Dual circuit air braking system

Parking Brake

Spring cylinder storage

Auxiliary Brake

Exhaust brake

OTHER

Fuel Tank

400L Steel

Battery

12V/150Ah*2, maintenance-free

Seat

2 seats, driver air seat

Brake Valve

Wabco

PTO

Spline type

A/C

Standard
