FAW JH6 6X4 390HP


Coal Hauling Truck (RHD)

The FAW JH6 6x4 390HP is a powerful coal hauling truck designed for heavy-duty transport. Equipped with a 390 horsepower engine and a 6x4 drivetrain, it offers excellent traction and performance, even in challenging terrain. This right-hand drive (RHD) vehicle is well-suited for regions with left-side driving. Built for durability and efficiency, the FAW JH6 is ideal for the demanding requirements of coal transport, ensuring reliable operation and the capacity to handle large loads with ease.

Description

 FAW JH6 6X4 390HP Coal Hauling Truck Core Advantages
  • 1) 11 liter All-win engine, as well as the equivalent technology from Europe. The four-valve engine is designed with sufficient intake and thorough exhaust.
  • 2) 700 L high-strength steel plate frame. Unique rolling processed frame, lightweight, high strength, and bending resistance.
  • 3) The patented dual I-bar V-shaped arrangement with low center of gravity.
  • 4) Maintenance-free balanced suspension shaft and 4U bolt fastening.
  • 5) The first all-steel cab in China to pass the highest collision regulation standard in Europe (Regulation ECER29).
  • 6) The convex sunshade is able to block more light.
  • 7) The exhaust pipe blows upward/Oil type Air Filter.

Technical Specifications

Main Spesification:

Model:

CA3252P7K2T1YA80

Type:

6x4 Dumper chassis, Euro 2

MASS:

Max GVW (kg):

60000

Curb Weight (Kg):

11000

Max. Loading Capacity (Kg):

49000

Upbody Optional (mm):

6000

DIMENSIONS:

Length*Width*Height (mm):

8045 x 2550 x 3365

Wheel Base (mm):

4250 + 1450

Wheel Track Front /Rear (mm):

2055 / 1878

Overhang Front /Rear (mm):

1495 / 850

PERFORMANCE:

Max. Speed (Km/h):

70

Max. Grade Ability (%):

35

Approach/Departure Angle (°):

17 / 40

Min. Ground Clearance (mm):

355

Min. Steering Radius (m):

17

CAB:

Model CAB:

JH6, RHD

Category:

Hill floor/Flat roof/Single sleeper

FRAME:

Main Rail Section (mm):

300 x 80 x (8 + 8 + 5)

ENGINE:

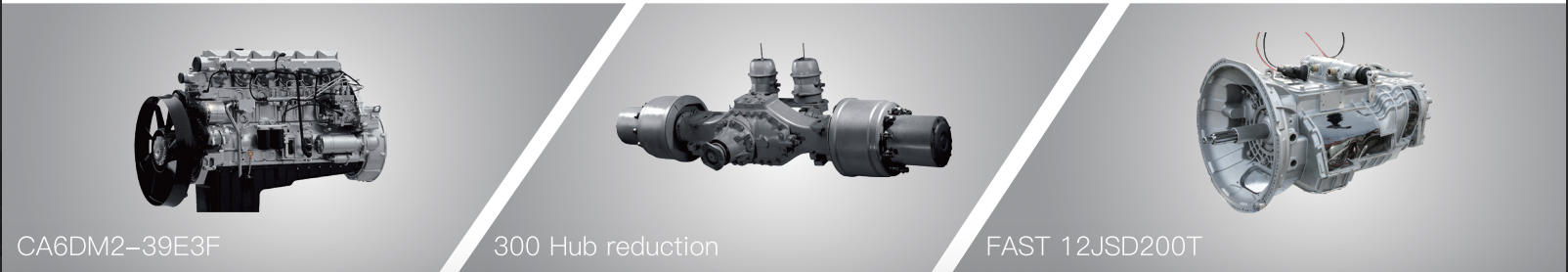

Model Engine:

FAW CA6DM2-39

Type Engine:

Mechanical pump

Displacement (L):

11.04

Max Output Power (Kw/rpm):

290 / 1900

Max Torque (Nm/(r/min)):

1750 / 1200 - 1400

Horsepower (Ps):

390

Emission Level:

Euro 2

WHEEL:

Tire Model:

12.00R24-20PR

Tire Rim:

8.5-24

CLUTCH

Driven Plate Dia

EATON φ430

Clutch Type

Dry type diaphragm clutch

STEERING

Steering Type

17Mpa

Ratio

26.2

TRANSMISSION

Transmission Model

FAST 12JSD200T

Transmission Type

10+2 gear, 2000Nm

Forward Gear Ratio

i1=15.53; i2=12.08; i3=9.39; i4=7.33; i5=5.73; i6=4.46; i7=3.48; i8=2.71; i9=2.11; i10=1.64; i11=1.28; i12=1.00

Reverse Gear Ratio

iRH=3.33; iRL=14.86

AXLE

Front

2055 model, 9000kg

Rear

300 hub reduction, 16000kg, Reduction Ratio: 5.921

SUSPENSION

Suspension Type

Double I-bar, 40 leaf spring bolts

Leaf Spring

Front 11 / Rear 13

BRAKE

Driving Brake

Dual circuit air braking system

Parking Brake

Spring cylinder storage

Auxiliary Brake

Engine brake

OTHER

Fuel Tank

400L steel

Battery

12V / 150Ah x 2, maintenance-free

Seat

2 seats, driver air seat

Brake Valve

Wabco

PTO

Spline type

A/C

Standard

Air Filter

Oil type

Upbody (mm)

Dimenssion Upbody

6000 x 2400 x 2000mm (28.8m³)

Bottom plate

Material Q355 thickness 8mm

Lifting

Front Lifting

Shape

Rectangle

Other

None
