FAW JH6 6X4 350HP


(Coal Hauling Truck)(RHD)

The FAW JH6 6x4 350HP is a coal hauling truck designed for efficient and reliable transport. It is powered by a 350 horsepower engine and features a 6x4 drivetrain, offering strong traction and stability on challenging terrains. The right-hand drive (RHD) configuration makes it suitable for regions with left-side driving. Built to withstand tough conditions, the FAW JH6 6x4 350HP is an excellent choice for coal hauling, combining durability with the capability to handle heavy loads with ease.

Description

 FAW JH6 6X4 350HP Coal Hauling Truck Core Advantages
  • 1) 700 L high-strength steel plate frame. Unique rolling processed frame, lightweight, high strength, and bending resistance.
  • 2) The patented dual I-bar V-shaped arrangement with low center of gravity.
  • 3) Maintenance-free balanced suspension shaft and 4U bolt fastening.
  • 4) The first all-steel cab in China to pass the highest collision regulation standard in Europe (Regulation ECER29).
  • 5) The convex sunshade is able to block more light.
  • 6) The exhaust pipe blows upward/Oil type Air Filter.

Technical Specifications

Main Spesification:

Model:

CA3251P2K2T1YA80

Type:

6x4 Dumper chassis, Euro 2

MASS:

Max GVW (kg):

40000

Curb Weight (Kg):

10400

Max. Loading Capacity (Kg):

29600

Upbody Optional (mm):

6000–6200

DIMENSIONS:

Length*Width*Height (mm):

8045 x 2550 x 3325

Wheel Base (mm):

4300+1350

Wheel Track Front /Rear (mm):

2055/1878

Overhang Front /Rear (mm):

1495/900

PERFORMANCE:

Max. Speed (Km/h):

70

Max. Grade Ability (%):

40

Approach/Departure Angle (°):

17 / 40

Min. Ground Clearance (mm):

314

Min. Steering Radius (m):

17

CAB:

Model CAB:

JH6, RHD

Category:

Hill floor/Flat roof/Single sleeper

FRAME:

Main Rail Section (mm):

300 x 80 x (8 + 8)

ENGINE:

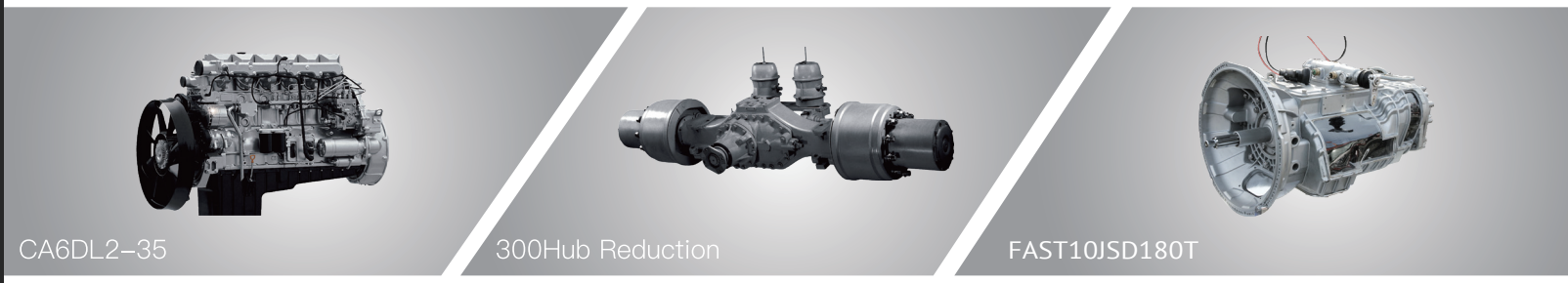

Model Engine:

FAW CA6DL2-35

Type Engine:

6 in-line/Water-cooling/Inter-cooling, Mechanical pump

Displacement (L):

8.6

Max Output Power (Kw/rpm):

258/2100

Max Torque (Nm/(r/min)):

1450/1300–1500

Horsepower (Ps):

350

Emission Level:

Euro 2

WHEEL

Tire Model

11.00R20-18PR

Tire Rim

8.5-20

CLUTCH

Driven Plate Dia

EATON Φ430

Clutch Type

Dry type diaphragm clutch

STEERING

Steering Type

17Mpa

Ratio

26.2

TRANSMISSION

Transmission Model

FAST10JSD180T

Transmission Type

9+1 gear, 1500Nm

Forward Gear Ratio

iL=12.65; i1=8.38; i2=6.22; i3=4.57; i4=3.40; i5=2.46; i6=1.83; i7=1.34; i8=1.00

Reverse Gear Ratio

iR=13.22

AXLE

Front

2055 model, 9000kg

Rear

300 hub reduction, 16000kg,

Reduction Ratio

5.921

SUSPENSION

Suspension Type

Double I-bar, 40 leaf spring bolts

Leaf Spring

Front 11 / Rear 13

BRAKE

Driving Brake

Dual circuit air braking system

Parking Brake

Spring cylinder storage

Auxiliary Brake

Exhaust braking

OTHER

Fuel Tank

400L steel

Battery

12V / 150Ah x 2, maintenance-free

Seat

2 seats, driver air seat

Brake Valve

Wabco

PTO

Spline type

A/C

Standard

Air Filter

Oil type
