FAW JH6 8X4 390HP


(Nickel Hauling Truck)(RHD)

The FAW JH6 6x4 390HP is a nickel hauling truck designed for heavy-duty transport in challenging environments. Powered by a 390 horsepower engine and featuring a 6x4 drivetrain, it offers excellent traction and stability on rough terrains. The right-hand drive (RHD) setup is tailored for regions with left-side driving. Built for durability and efficiency, the FAW JH6 6x4 390HP is a dependable choice for nickel hauling, capable of handling substantial loads with reliable performance.

Description

 FAW JH6 6X4 390HP Coal Hauling Truck Core Advantages
  • 1) 11 liter All-win engine, as well as the equivalent technology from Europe. The four-valve engine is designed with sufficient intake and thorough exhaust.
  • 2) 700 L high-strength steel plate frame. Unique rolling processed frame, lightweight, high strength, and bending resistance.
  • 3) The patented dual I-bar V-shaped arrangement with low center of gravity.
  • 4) Maintenance-free balanced suspension shaft and 4U bolt fastening.
  • 5) The first all-steel cab in China to pass the highest collision regulation standard in Europe (Regulation ECER29).
  • 6) The convex sunshade is able to block more light.
  • 7) The exhaust pipe blows upward/Oil type Air Filter.

Technical Specifications

Main Spesification:

Model:

CA3252P7K2T1YA80

Type:

6x4 Dumper chassis, Euro 2

MASS:

Max GVW (kg):

60000

Curb Weight (Kg):

11000

Max. Loading Capacity (Kg):

49000

Upbody Optional (mm):

5800

DIMENSIONS:

Length*Width*Height (mm):

7845 x 2550 x 3365

Wheel Base (mm):

4050 + 1450

Wheel Track Front /Rear (mm):

2055 / 1878

Overhang Front /Rear (mm):

1495 / 850

PERFORMANCE:

Max. Speed (Km/h):

70

Max. Grade Ability (%):

35

Approach/Departure Angle (°):

17 / 40

Min. Ground Clearance (mm):

355

Min. Steering Radius (m):

17

CAB:

Model CAB:

JH6, RHD

Category:

Hill floor/Flat roof/Single sleeper

FRAME:

Main Rail Section (mm):

300 x 80 x (8 + 8 + 5)

ENGINE:

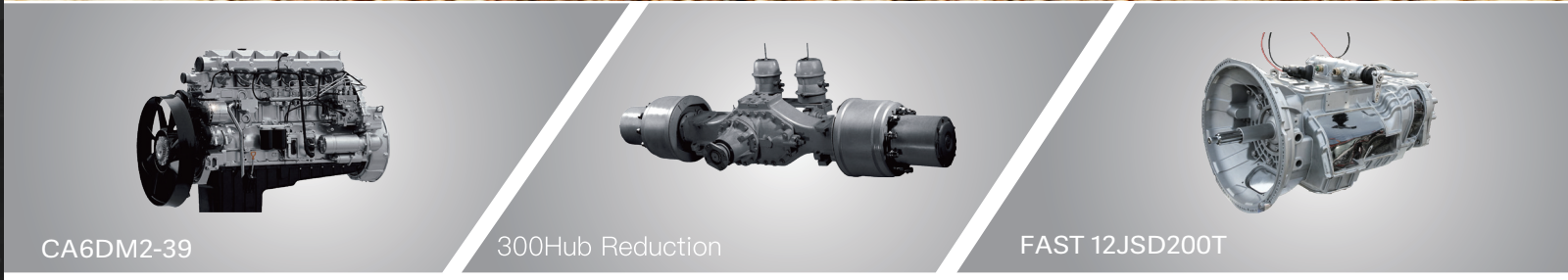

Model Engine:

FAW CA6DM2-39

Type Engine:

Mechanical pump

Displacement (L):

11.04

Max Output Power (Kw/rpm):

290 / 1900

Max Torque (Nm/(r/min)):

1750 / 1200 - 1400

Horsepower (Ps):

390

Emission Level:

Euro 2

WHEEL:

Tire Model:

12.00R24-20PR

Tire Rim:

8.5-24

CLUTCH

Driven Plate Dia

EATON φ430

Clutch Type

Dry type diaphragm clutch

STEERING

Steering Type

17Mpa

Ratio

26.2

TRANSMISSION

Transmission Model

FAST 12JSD200T

Transmission Type

12+2 gear, 2000Nm

Forward Gear Ratio

i1=15.53; i2=12.08; i3=9.39; i4=7.33; i5=5.73; i6=4.46; i7=3.48; i8=2.71; i9=2.11; i10=1.64; i11=1.28; i12=1.00

Reverse Gear Ratio

iRH=3.33; iRL=14.86

AXLE

Front

2055 model, 9000kg

Rear

300 hub reduction, 16000kg, Reduction Ratio: 5.921

SUSPENSION

Suspension Type

Double I-bar, 40 leaf spring bolts

Leaf Spring

Front 11 / Rear 13

BRAKE

Driving Brake

Dual circuit air braking system

Parking Brake

Spring cylinder storage

Auxiliary Brake

Engine brake

OTHER

Fuel Tank

400L steel

Battery

12V / 150Ah x 2, maintenance-free

Seat

2 seats, driver air seat

Brake Valve

Wabco

PTO

Spline type

A/C

Standard

Air Filter

Oil type

Upbody (mm)

Dimenssion Upbody

5800 x 2300 x 1800mm

Bottom plate

Material T1700 thickness 10mm

Lifting

Front Lifting

Shape

Rectangle

Other

None

Side plate

Material T1700 thickness 6mm
