FAW JH6 6X4 350HP


(Logging Truck)(RHD)

The FAW JH6 6x4 350HP is a logging truck built for tough forestry operations. Equipped with a 350 horsepower engine and a 6x4 drivetrain, it delivers strong performance and traction on rugged terrain. The right-hand drive (RHD) configuration is ideal for regions with left-side driving. Designed for durability and efficiency, the FAW JH6 6x4 350HP is well-suited for transporting heavy logs, offering reliable handling and the capability to navigate challenging environments.

Description

 FAW JH6 6X4 390HP Coal Hauling Truck Core Advantages
  • 1) 700 L high-strength steel plate frame. Unique rolling processed frame, lightweight, high strength, and bending resistance.
  • 2) The patented dual I-bar V-shaped arrangement with low center of gravity.
  • 3) Maintenance-free balanced suspension shaft and 4U bolt fastening.
  • 4) The first all-steel cab in China to pass the highest collision regulation standard in Europe (Regulation ECER29).
  • 5) The convex sunshade is able to block more light.
  • 6) The exhaust pipe blows upward/Oil type Air Filter.

Technical Specifications

Main Spesification:

Model:

CA3251P2K2T1YA80

Type:

6x4 Dumper chassis, Euro 2

MASS:

Max GVW (kg):

40000

Curb Weight of Chassis (Kg):

10400

Max. Loading Capacity (Kg):

29600

Upbody Optional (mm):

6000–6200

DIMENSIONS:

Length*Width*Height (mm):

8045 x 2550 x 3325

Wheel Base (mm):

4300+1350

Wheel Track Front /Rear (mm):

2055/1878

Overhang Front /Rear (mm):

1495/900

PERFORMANCE:

Max. Speed (Km/h):

70

Max. Grade Ability (%):

40

Approach/Departure Angle (°):

17/40

Min. Ground Clearance (mm):

314

Min. Steering Radius (m):

17

CAB:

Model CAB:

JH6, RHD

Category:

Hill floor/Flat roof/Single sleeper

FRAME:

Main Rail Section (mm):

30080(8+8)

ENGINE:

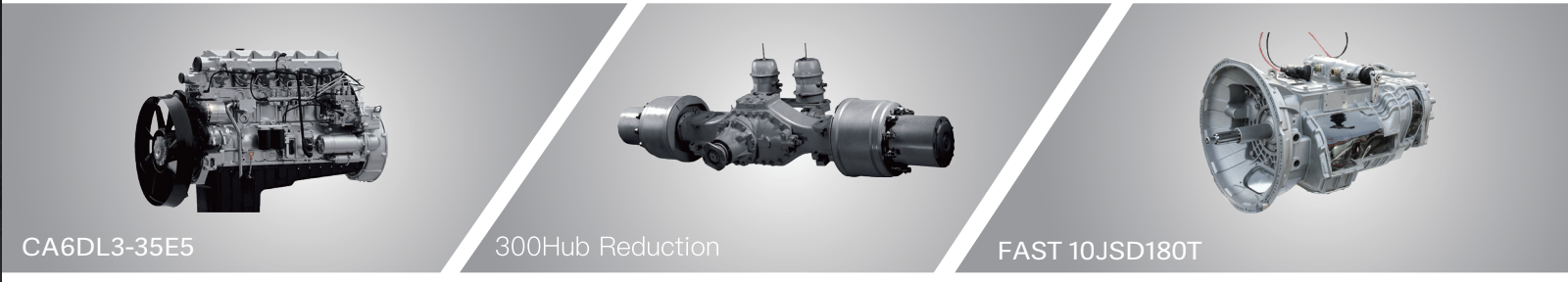

Model Engine:

FAW CA6DL2-35

Type Engine:

6 in-line/Water-cooling/Inter-cooling, Mechanical pump

Displacement (L):

8.6

Max Output Power (Kw/rpm):

258/2100

Max Torque (Nm/(r/min)):

1450/1300–1500

Horsepower (Ps):

350

Emission Level

Euro 2

WHEEL

Tire Model

11.00R20-18PR

Tire Rim

8.5-20

Tire Model

12.00R20-18PR

Tire Rim

8.8-20

CLUTCH

Driven Plate Dia

EATON Φ430

Clutch Type

Dry type diaphragm clutch

SUSPENSION

Suspension Type

Double I-bar, 4U leaf spring bolts

Leaf Spring

Front 11/Rear 13

TRANSMISSION

Transmission Model

FAST 10JSD180T

Transmission Type

10+2 gear, 1800Nm

Forward Gear Ratio

14.986, 11.188, 8.306, 6.105, 4.475, 3.349, 2.5, 1.856, 1.364, 1.0

Reverse Gear Ratio

15.113, 3.377

AXLE

Front

Model 2055, 9000kg

Rear

Hub reduction 300, 13000kg

Reduction Ratio

5.921

BRAKE

Driving Brake

Dual circuit air braking system

Parking Brake

Spring cylinder storage

Auxiliary Brake

Engine brake

OTHER

Fuel Tank

400L steel

Battery

12V/150Ah*2, maintenance-free

Seat

2 seats, driver air seat

Brake Valve

Wabco

PTO

None

A/C

Standard
