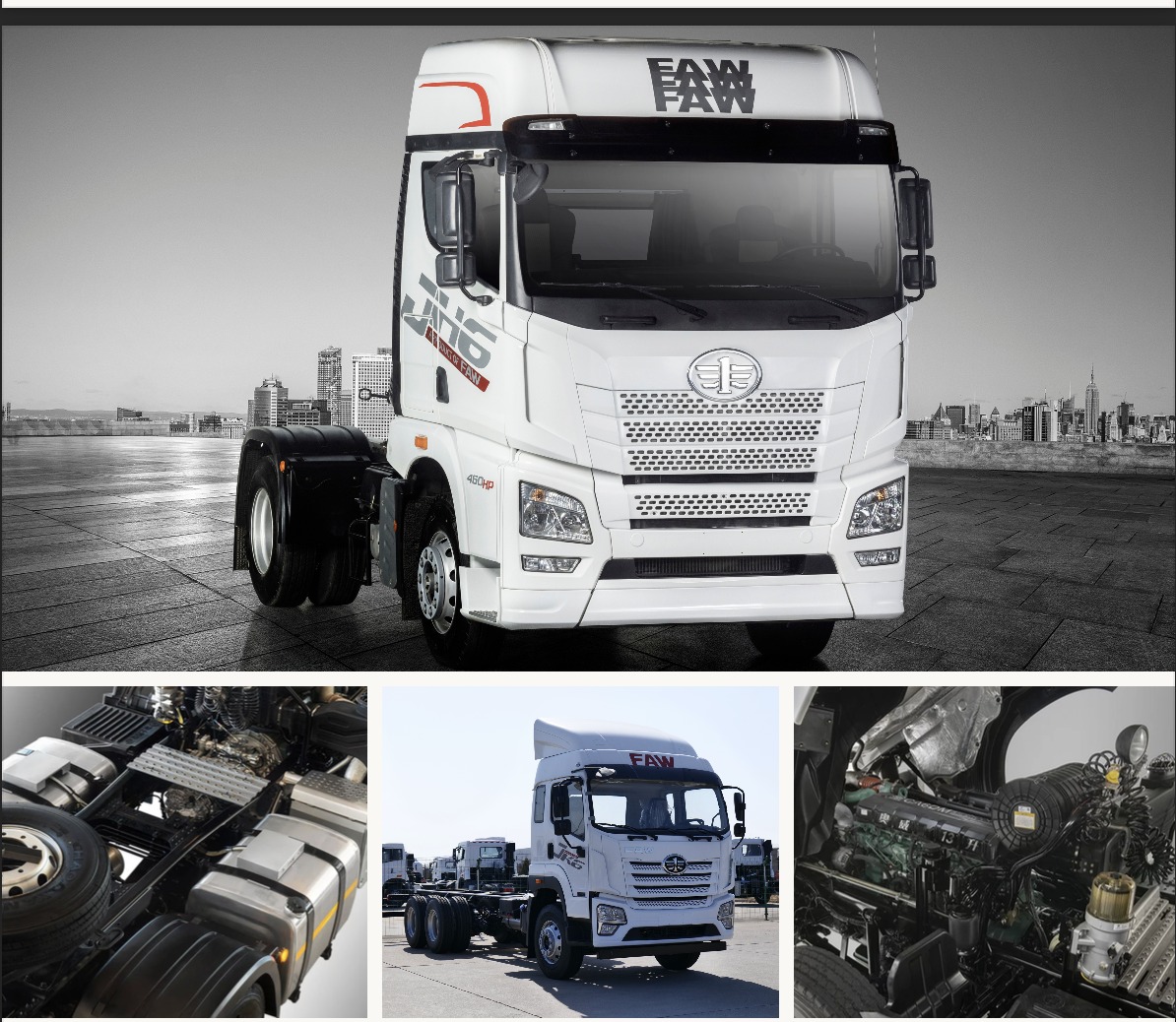

FAW JH6 6X4 550HP


Heavy Duty Coal Hauling Tractor(RHD)

FAW Trucks, a brand under the First Automobile Works (FAW) Group, is one of China's leading commercial vehicle manufacturers. Founded in 1953, FAW Group has grown to become a global player in the automotive industry, producing a wide range of vehicles including trucks, buses, and passenger cars.

Description

  FAW JH6 6X4 550HP Heavy Duty Coal Hauling Tractor Core Advantages
  • 1) 13 liter All-win engine, as well as the equivalent technology from Europe. The four-valve engine is designed with sufficient intake and thorough exhaust.
  • 2) 700 L high-strength steel plate frame. Unique rolling processed frame, lightweight, high strength, and bending resistance.
  • 3) The patented dual I-bar V-shaped arrangement with low center of gravity.
  • 4) Maintenance-free balanced suspension shaft and 4U bolt fastening.
  • 5) The first all-steel cab in China to pass the highest collision regulation standard in Europe (Regulation ECER29).
  • 6) The convex sunshade is able to block more light.
  • 7) The exhaust pipe blows upward/Oil type Air Filter.

Technical Specifications

Main Spesification:

Model:

CA4253P26K2T1EYA80

Type:

6x4 Heavy Duty Tractor

MASS:

Max GVW (kg):

120000

Curb Weight (Kg):

11000

Max. Loading Capacity (Kg):

109000

Upbody Optional (mm):

#90 fifth wheel

DIMENSIONS:

Length*Width*Height (mm):

7095*2550*3365

Wheel Base (mm):

3250+1450

Wheel Track Front /Rear (mm):

2055/1878

Overhang Front /Rear (mm):

1495/850

PERFORMANCE:

Max. Speed (Km/h):

70

Max. Grade Ability (%):

27

Approach/Departure Angle (°):

29/40

Min. Ground Clearance (mm):

360

Min. Steering Radius (m):

18

CAB:

Model CAB:

JH6, RHD

Category:

Hill floor/Flat roof/Single sleeper

FRAME:

Main Rail Section (mm):

30080(8+8+5)

ENGINE:

Model Engine:

FAW CA6DM3-55E

Type Engine:

Common rail, ECU

Displacement (L):

12.52

Max Output Power (Kw/rpm):

404/1800

Horsepower (Ps):

550

Emission Level:

remove Adblue

WHEEL:

Tire Model

12.00R24-20PR

Tire Rim

8.5-24

STEERING

Steering Type

17Mpa

Ratio

26.2

CLUTCH

Driven Plate Dia

EATON Φ430

Clutch Type

Dry type diaphragm clutch

SUSPENSION

Suspension Type

Double I-bar, 4U leaf spring bolts

Leaf Spring

Leaf spring, front 11/rear 13

TRANSMISSION

Transmission Model

FAST 12JSDX240TB (With PTO)

Transmission Type

12+2 gear, 2400Nm

Forward Gear Ratio

i1=15.53, i2=12.22, i3=9.386, i4=7.33, i5=5.726, i6=4.462, i7=3.480, i8=2.738, i9=2.104, i10=1.643, i11=1.283, i12=1.00

Reverse Gear Ratio

ir1=14.86, ir2=3.33

AXLE

Front

2055 model, 9000kg

Rear

300 hub reduction, 16000kgX2

Reduction Ratio

5.921

BRAKE

Driving Brake

Dual circuit air braking system

Parking Brake

Spring cylinder storage

Auxiliary Brake

Engine brake, hydraulic retarder

OTHER

Fuel Tank

400L AL

Battery

12V/180Ah*2, maintenance-free

Seat

2 seats, driver air seat

Brake Valve

Wabco

PTO

Flange type

A/C

Standard

Air Filter

Oil type
